AVT EMC CamControl Control unit for high resolution (UHD) and thermal cameras for EMC- and test laboratories, as well as general applications.
Features
- Control unit for AVT cameras in the visual and infrared wavelength range

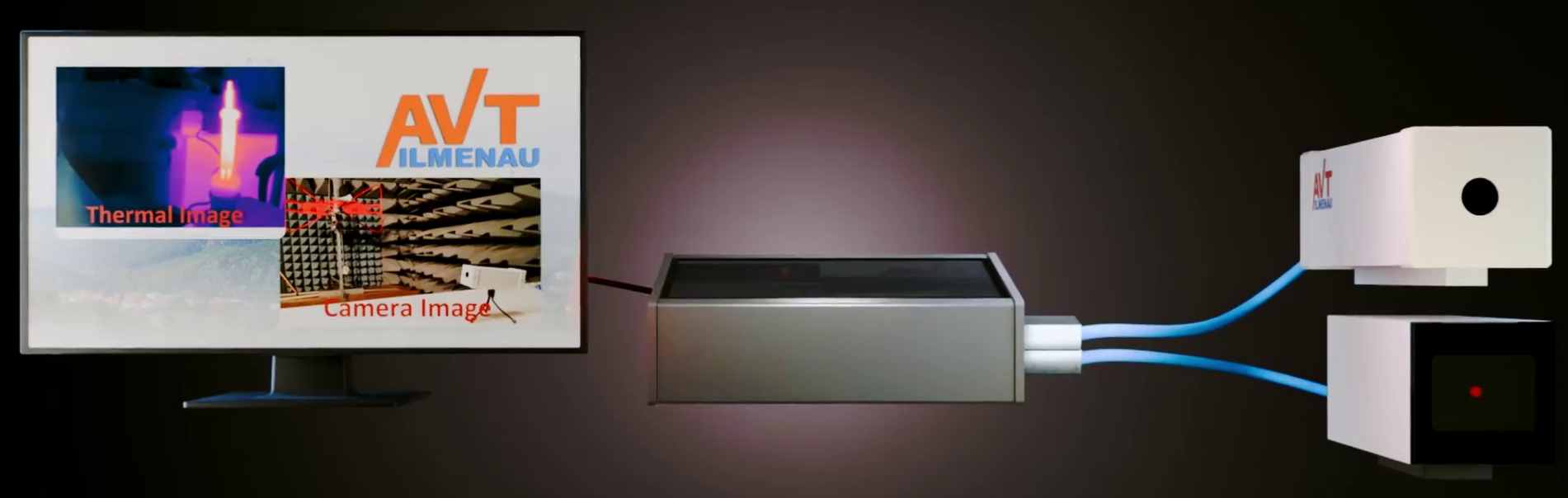

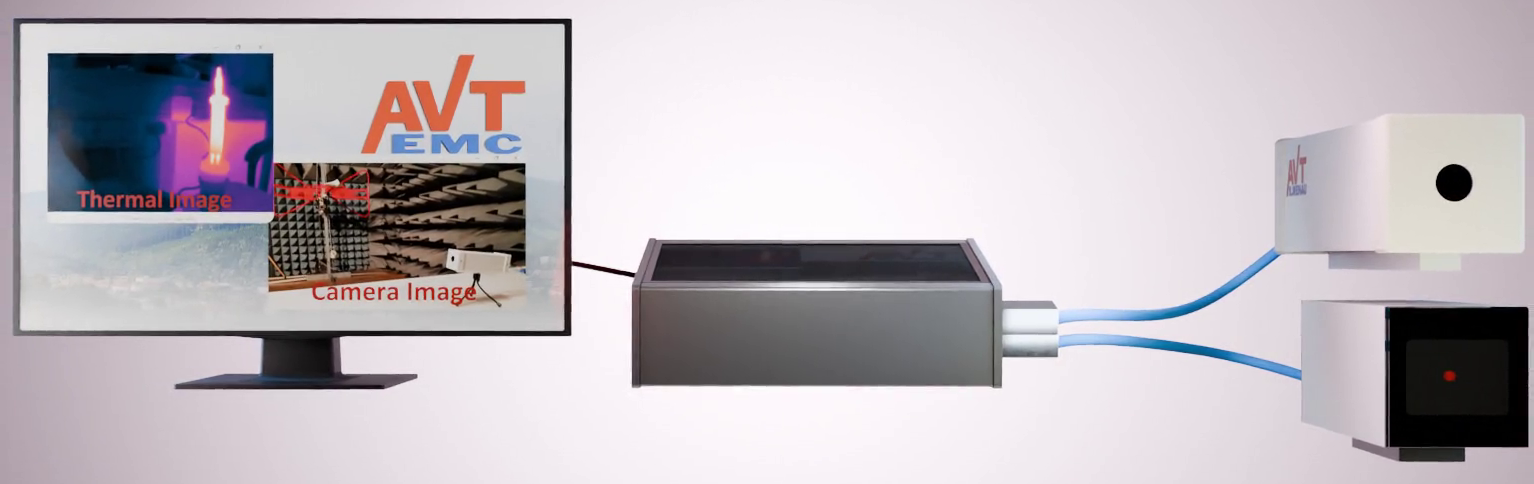

- Controls up to 2 AVT EMC 4K MiniCams or one 4K MiniCam and one ThermoCam or 2 ThermoCams with USB3 fiber line

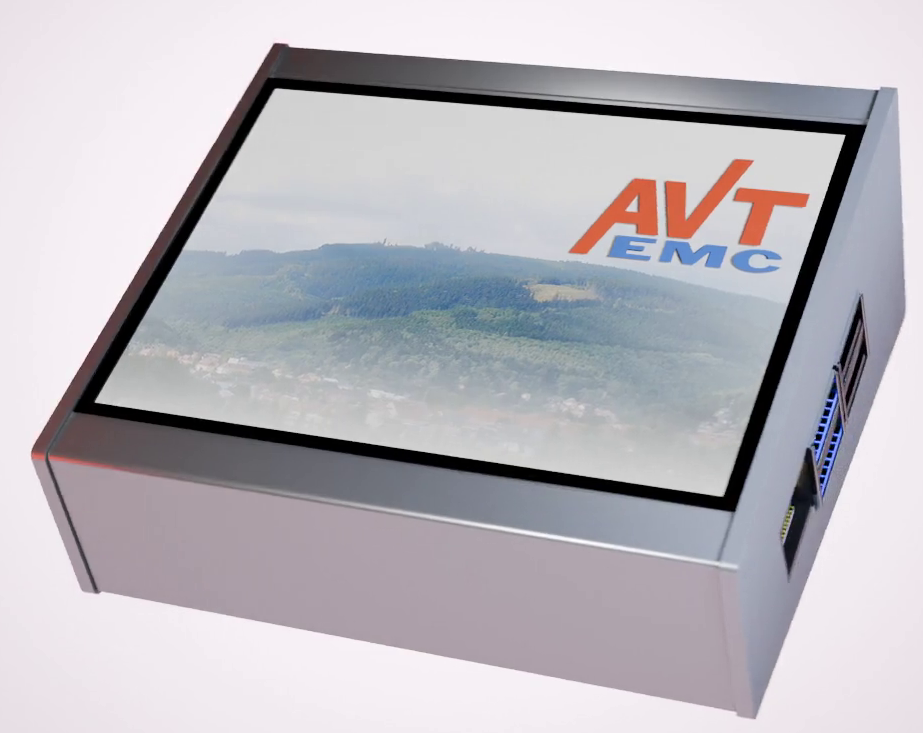

- Small housing in smart design (12,5 x10,5 x 5 cm)
- Output to HDMI monitors with FullHD resolution (4K resolution option)
- 5 inch IPS touch display on device
- LEDs for power and connected cameras (Cam 1, Cam 2)
- Power connection via USB-C plug (5 A)
- Automatic detection of connected cameras
- Realization of camera functions (pan/tilt/zoom/resolution/ compression/brightness/contrast/temperature etc.)

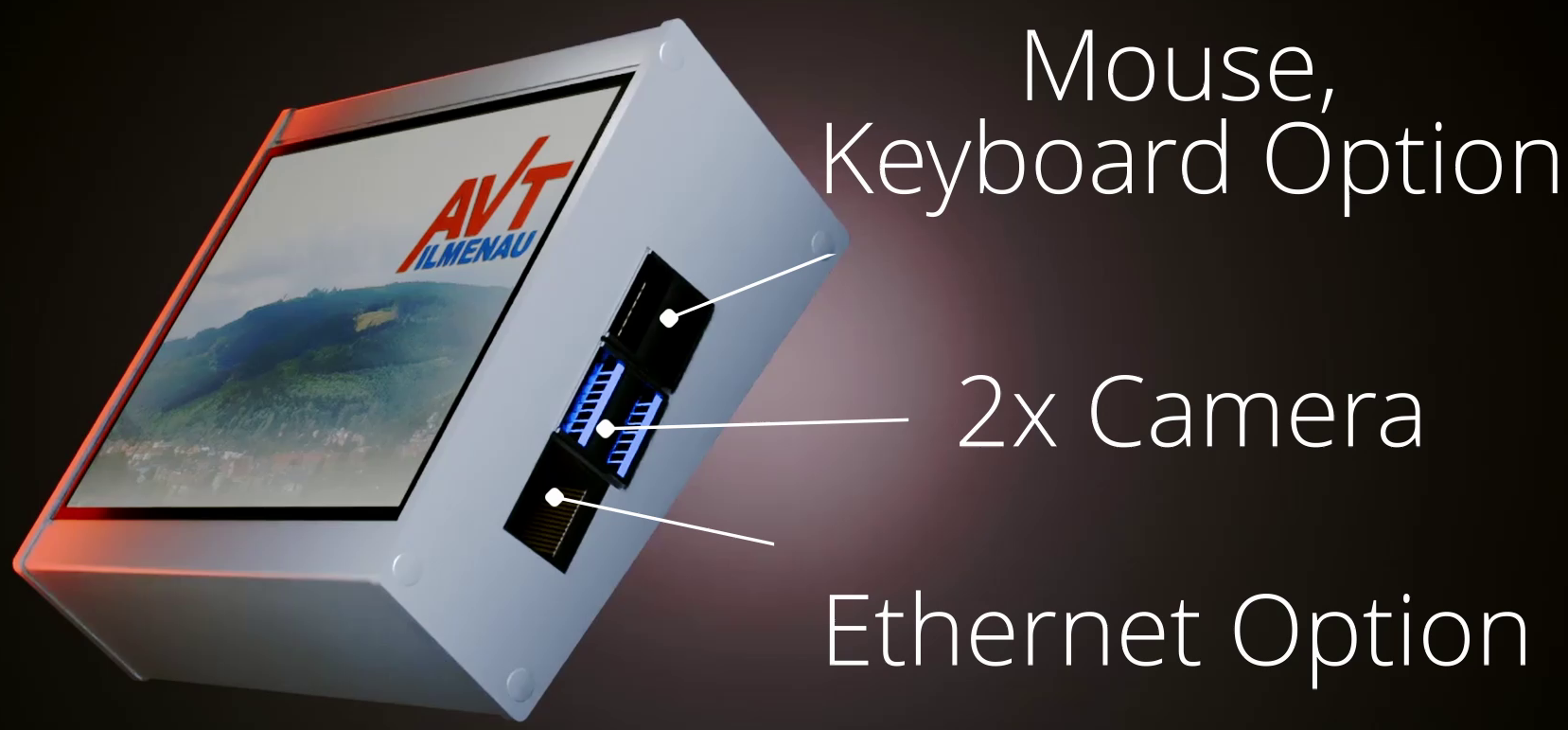

Options
- Mouse and keyboard connection
- Ethernet connection to PC or Laptop
